The Brief
In this brief I was asked to design a ritual intervention. With rapid advancements in technology we are connected more now than ever. Based on reading and first-hand observations I was required to design a technology-based intervention around the notion of ritual.
I conducted research, generated insights, used my intuition as a designer, and looked for inspiration to initiate the design of concepts. I was asked to focus on people rather than technology and to use both hardware and software that can sense and respond to what humans physically do. I engaged in early, iterative and rapid prototyping as an integral part of my design research process. The solution had to have a physical component that I could prototype using the skills developed during the Arduino workshops.
At a Glance

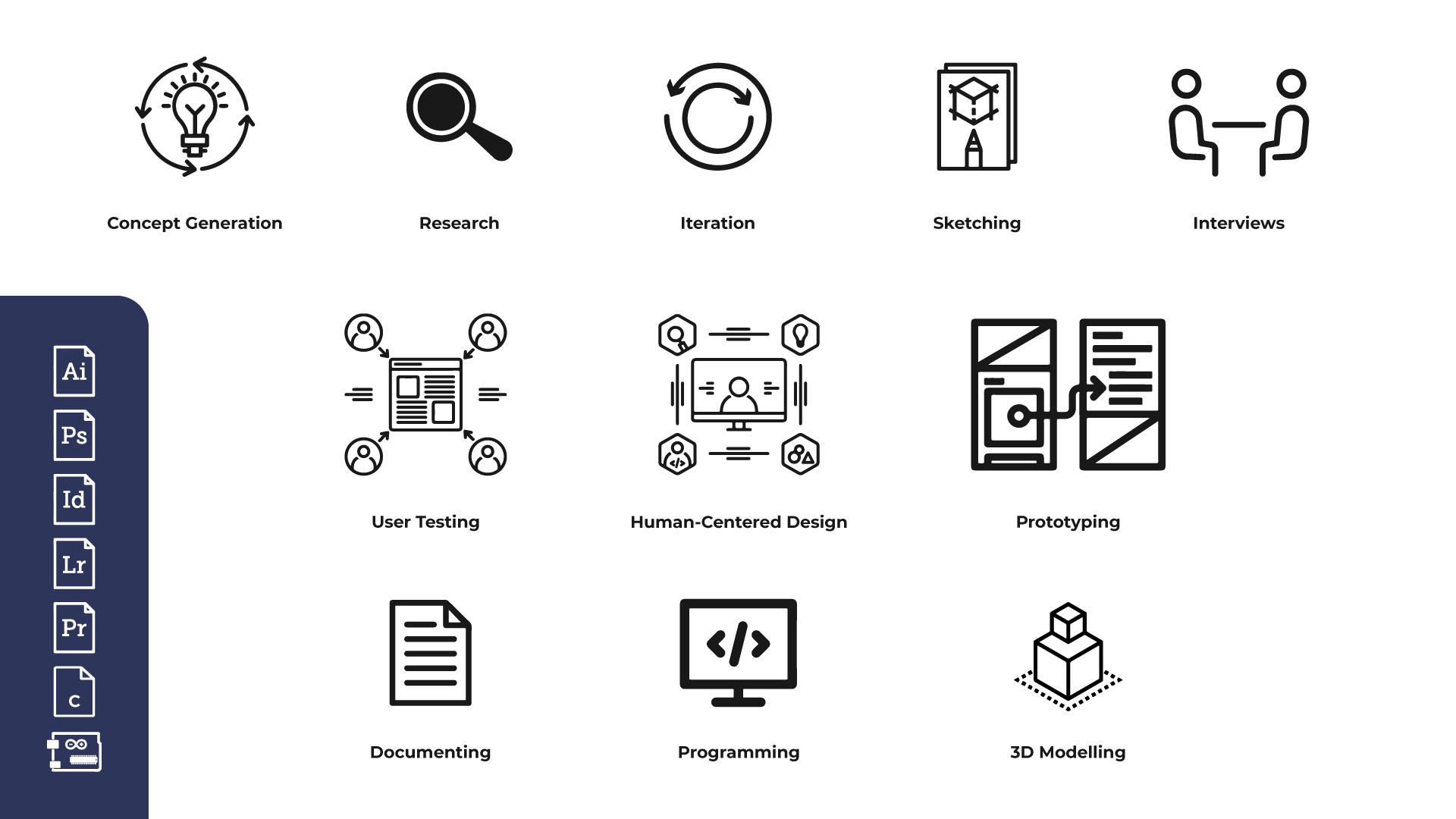

Here is an overview of the tools and processes I followed throughout this project.
Design Statement
Proof of Concept Video
Arduino Workshops

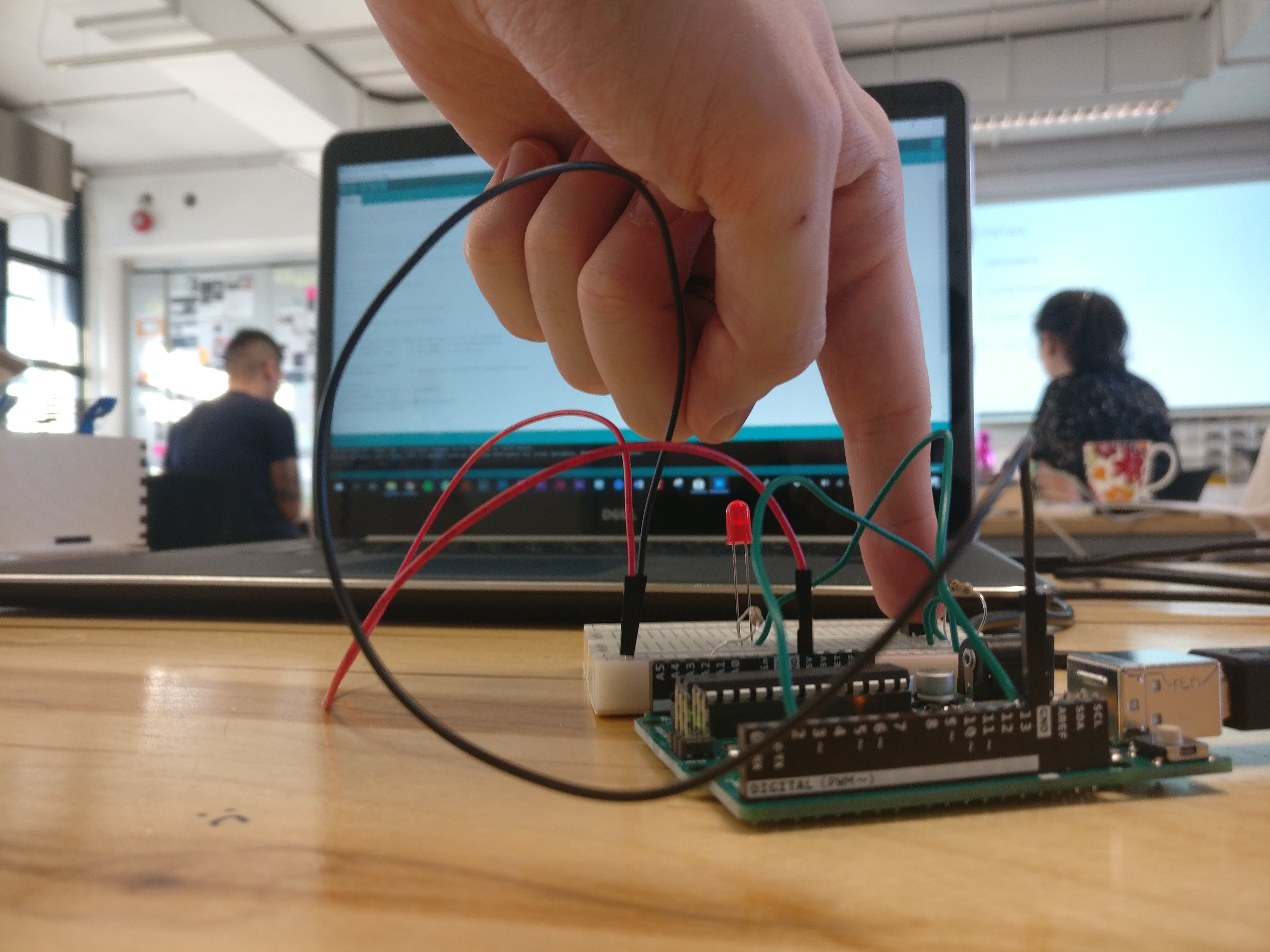

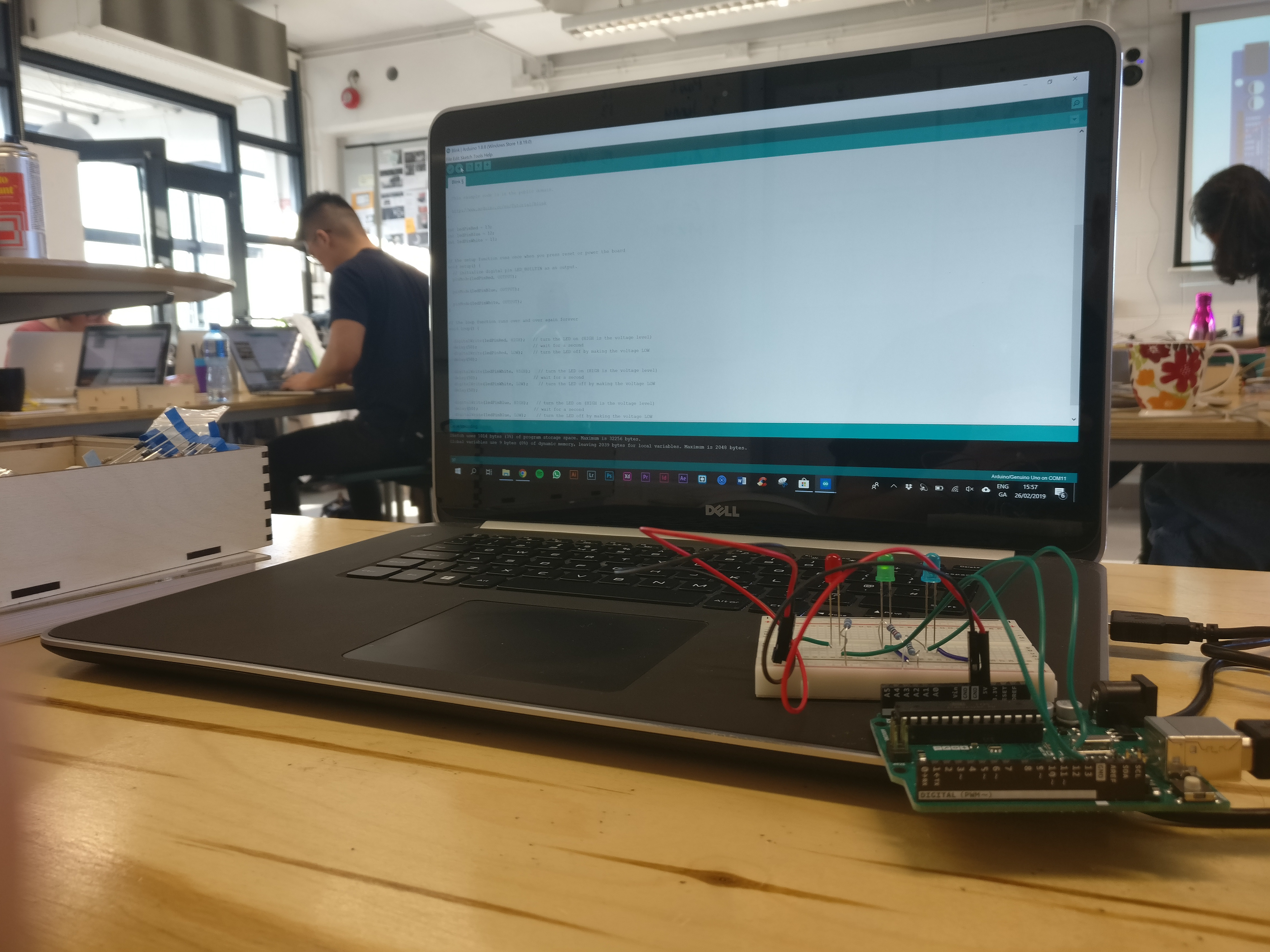

I had workshops in the first week of this project to introduce the class to Arduino. I had previously worked with Arduino in my undergraduate degree, so it was a nice refresher to have some workshops. Early on I was required to document my process through Instagram. Here is the profile I created for the documentation of my overall process.
Research
For this phase of the project I was required to gain insights into rituals through the use of photos. I took a slightly different approach compared to the rest of the class: as a photographer, I had a library of photos from the past 5 years. This direction lead me down some interesting paths as I was not limited to what was just immediately around me. I pulled on photos I took when travelling, thereby injecting other cultures into my process.
The next part of my process was sense-making. I broke down the rituals into five different areas (Well being, Social, Personal, Success, Relationships). From there I could see which was the dominant area by linking each photo to an area with string of different colours.
Sense Making
Sense Making
Sense Making
Sense Making
Ritual: Smoking
Ritual: Smoking
The two areas that stuck out in my mind that would be interesting to design for were the rituals of smoking and food culture. After more consideration, I further narrowed my focus to find a potential problem I could design for. Since many people find it difficult to quit smoking, I felt this was the best direction for my design.
Concept Generation
For the initial stage of concept generation I began to sketch out some ideas. The three forms I came to were a device similar to an inhaler or vape, a loose concept around drinking water and finally a lock for the users cigarettes.
Sketching
Sketching
Sketching
Sketching
Sketching
Sketching
After more research into cravings and what may suppress them, I came across the 4 D's on the HSE website. The form I felt best suited my research was the hand held inhaler.
Iteration

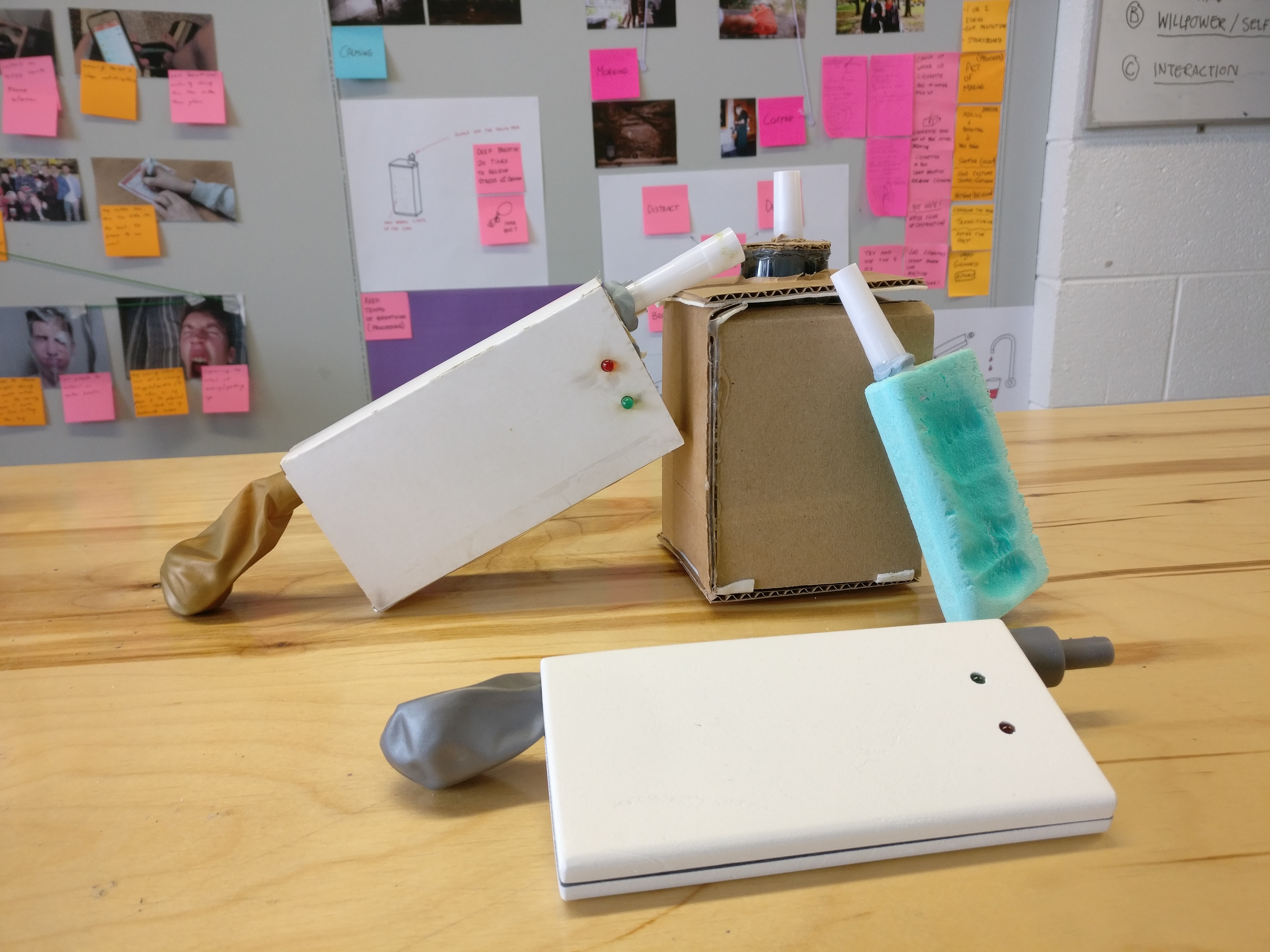

I began by creating experience prototypes in different forms made from cardboard and foam.

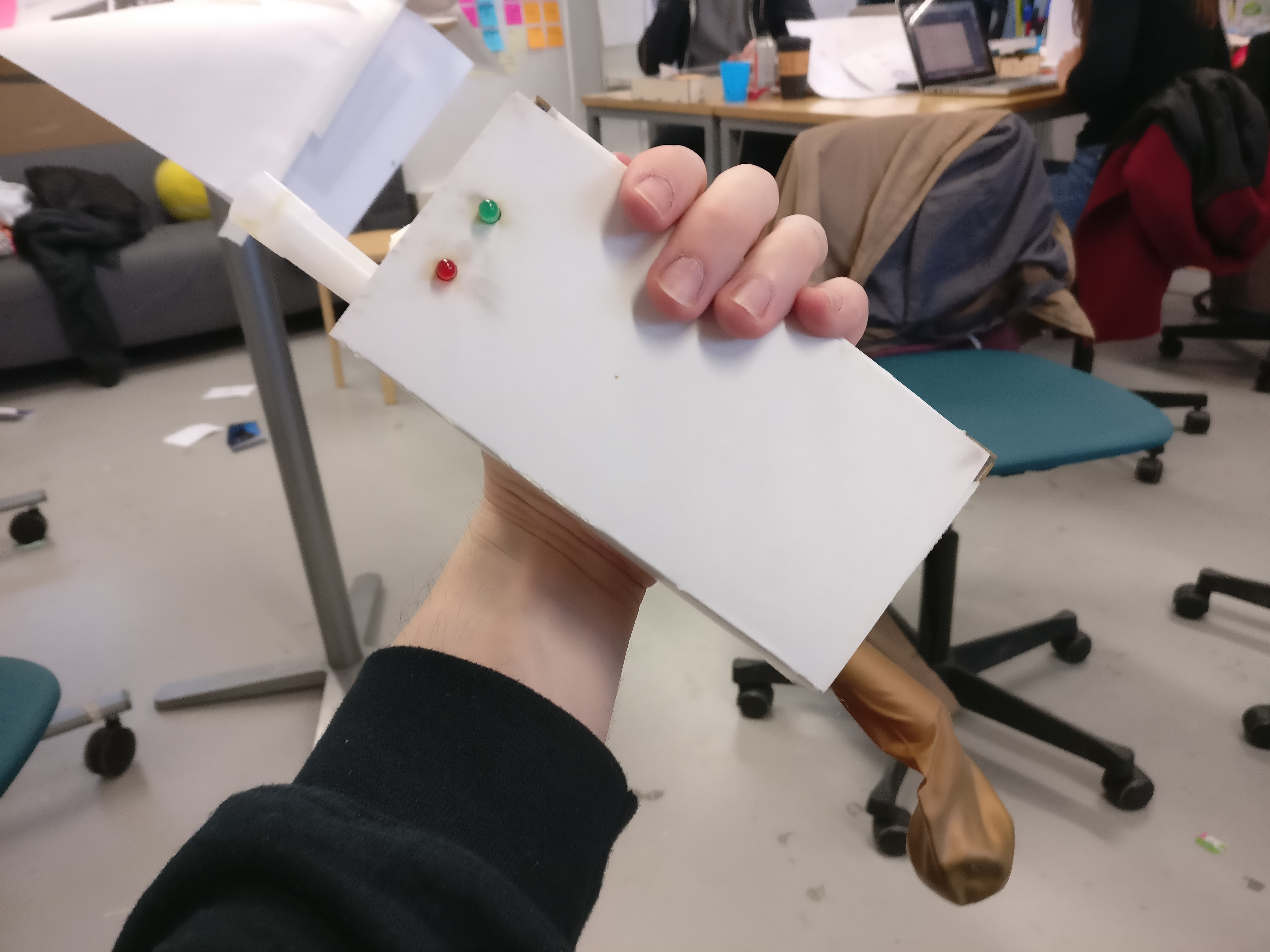

After I had created these forms I began to think of the interaction. I wanted to include a balloon in the device as from my research I found anxiety can be reduced by keeping CO2 in the body. Below you can see me testing the device.

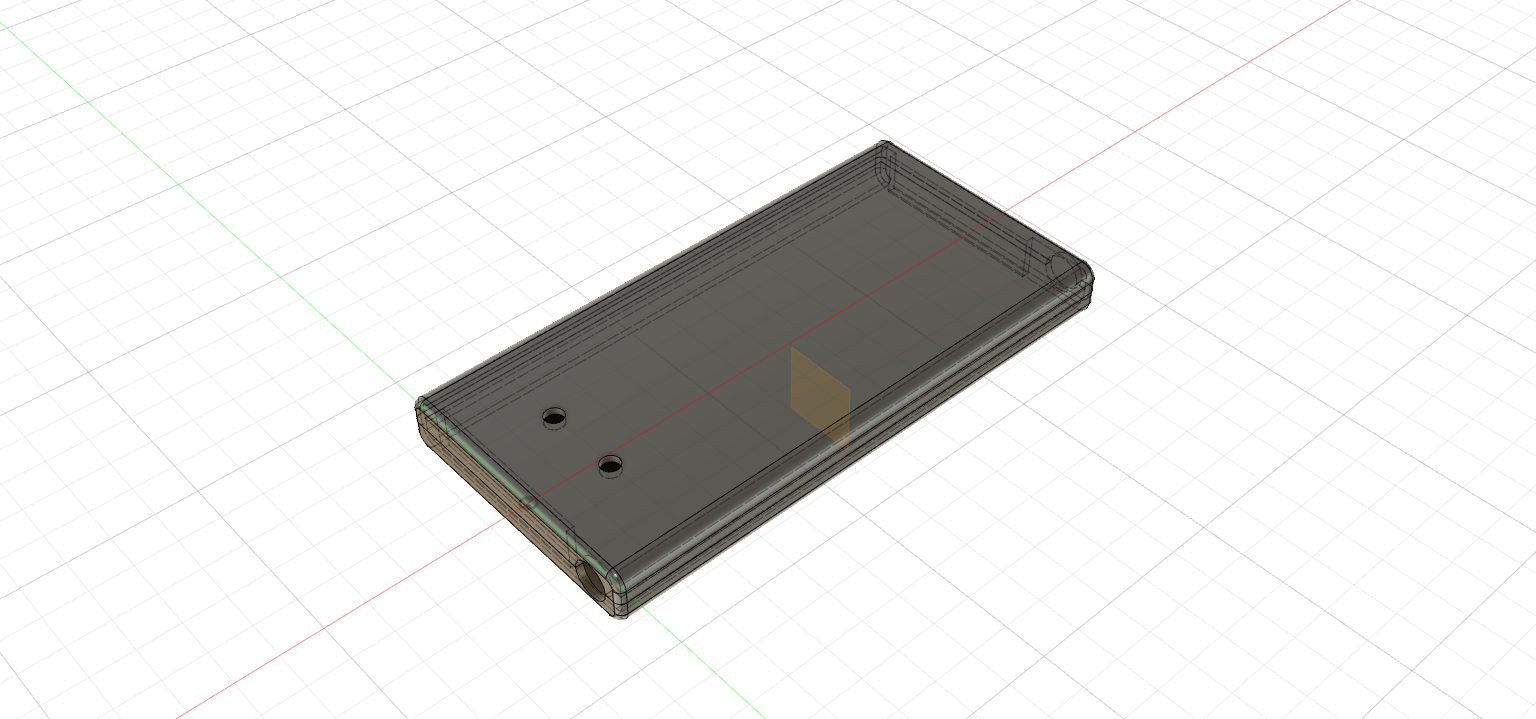

Next I decided to think about how I could create a more finished product, to create the finish I wanted I needed to 3D print my device. I began by 3D modelling in Fusion 360, this was a steep learning curve as I had no previous experience with modelling but I was lucky in that I picked it up quickly. After some consideration I felt it would be best to create my model out of cardboard with a laser cutter. This was useful as I found the model I had made to be too big. So I went back and remodeled the device to be half the depth, so it would fit in a users hand nicely.
3D Model V1
3D Model V1

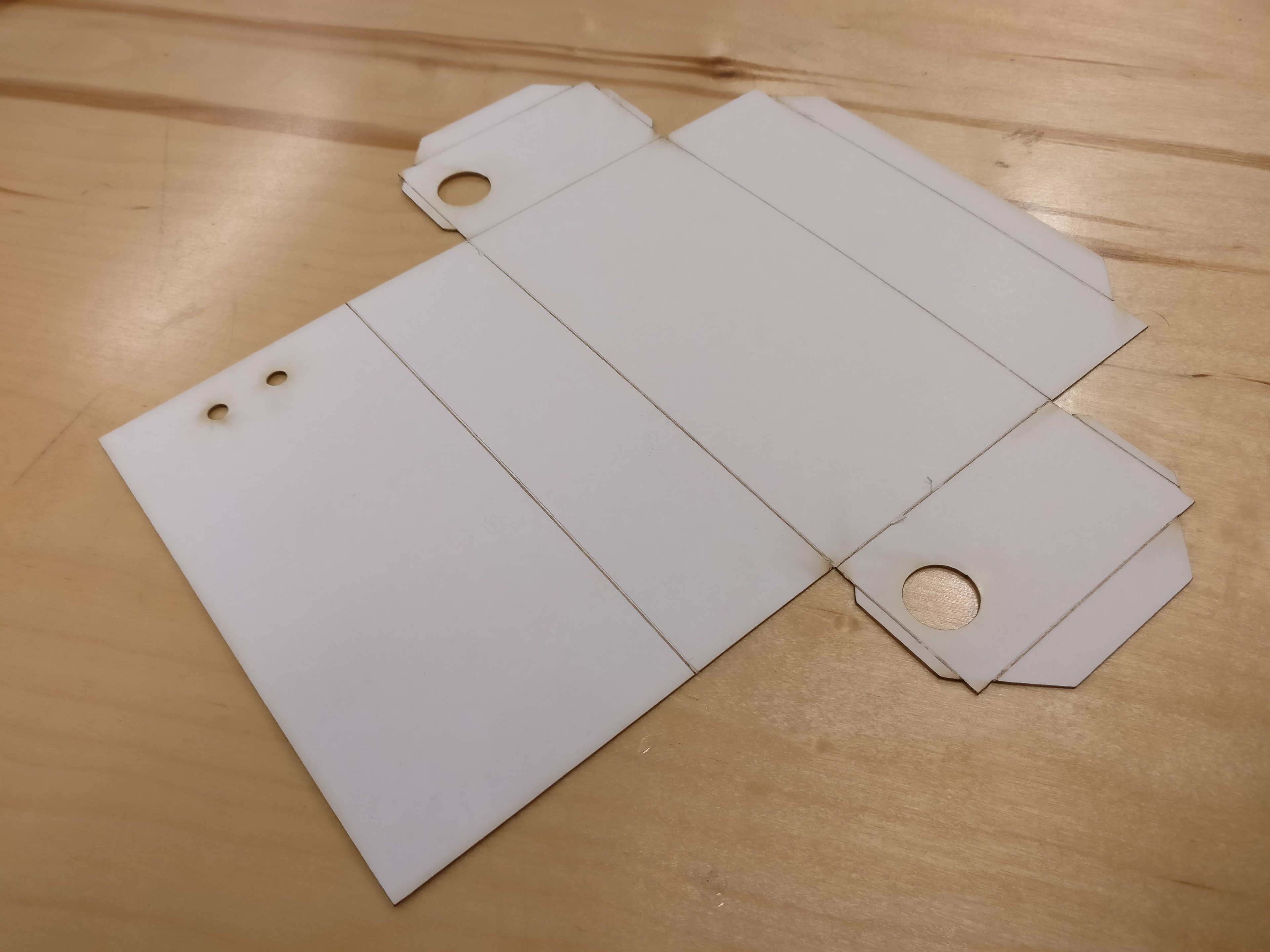

Laser Cut Cardboard Model
Laser Cut Cardboard Model

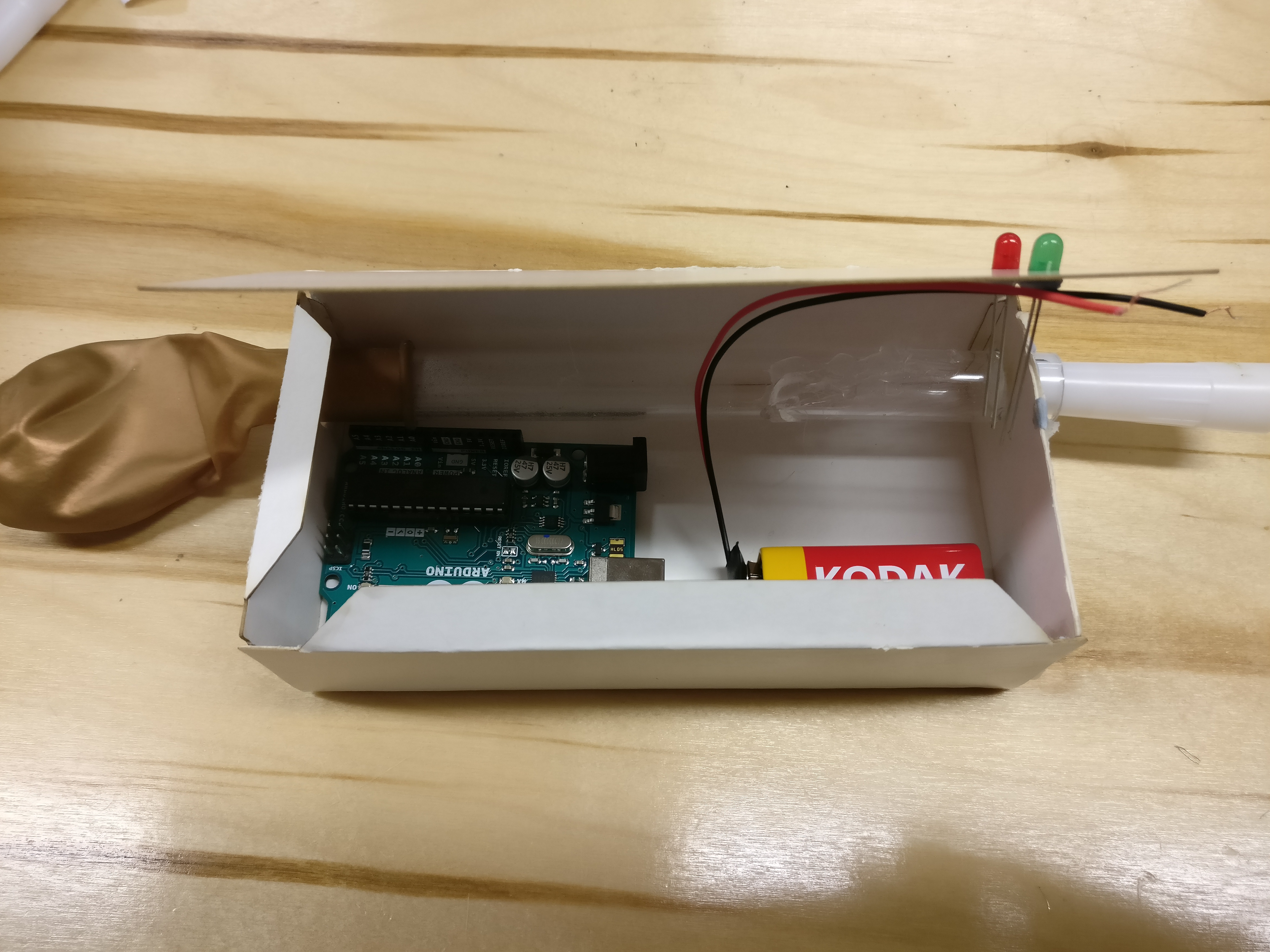

Arduino in Cardboard Model
Arduino in Cardboard Model
Cardboard Model
Cardboard Model
Below is my final 3D model in Fusion 360, along with the inner workings of the device. The device used an Arduino Micro, by creating a circuit and a valve switch made from cardboard and copper tape I was able to complete the circuit when a user exhaled into the device. I placed a hole in the mouth piece to create the air passage for the valve.
3D Model V2
3D Model V2
3D Model Mouth Piece
3D Model Mouth Piece
Inner Workings
Inner Workings
Once I had completed the circuitry, my next step was to paint the device. I went through different stages of sanding and painting to get the required finish.
Finished Product
Finished Product
All Iterations
All Iterations
What did I learn?
In the beginning we were asked to intervene in the daily rituals of humans, this in its nature is difficult as we are habitual creatures. By widening my focus to what was not immediately around me I began to see patterns that are global. Things that connect us all, but how each one of us carry them out is completely different. I choose the path of creating an intervention for smokers trying to quit as I felt it was the strongest problem, that many people struggle with everyday.
Iterating on my forms and how the physical interaction of the device worked, really helped me to begin to think creatively about the problem. Feedback is crucial for users in any type of interaction, albeit physical or digital. By adding a balloon, it added a bit of delight but also added much needed function to focus the user in keeping track of their breathing.
Reflecting back on my solution, even though I created a functioning prototype. I would have liked to test for a longer and give it to a smoker trying to quit over a week or so. To get some proper feedback about its pitfalls and of course of they felt about the overall experience.
